Crusher - Hennenman

Models Max. Feed Size (mm)Capacity (t/h)
Final Size mm
Adjustment Type)

Motor Power (kW)
Dragon 7600 mm80 – 100 t/h0 - 20 mm122 Kw-142 Kw
The earth is taken from by-pass Conveyor. As request connected to main conveyor.
Whit bypass conveyor , can be taken three different sizes buy stock conveyor.
As request taken only one size.

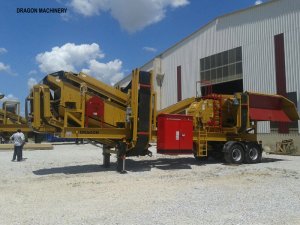

New Generation Mobile Crushing and Screening Plant Closed Circuit Type Dragon 7

Mobile Chassis

Dragon 7 wheel suspension

Total teen(10) blocking legs four(4) of them hydraulic ally operated

Airbrakes, running lights, and mud flaps

Fixed walkway on both sides with hand rails

Walkways and ladders both sides of screen & front crossover

Access ladder to chassis

Hydraulic Levelling System

2 axle chassis

Four (4) hydraulic levelling jack system

Hopper and Feeder

Approximately 10 – 12,5 m3 capacity

Vibrator System

Feeder Grizzly System

Feeder Size : 650 x 2800 mm 2nos. Vibrator adjusttable throw amplitude Emtaş or Oli brand

Turbo Impact Crusher

Primary, Secondary and Tertiary functions one machine.

Rotor Size : 1000 x 650mm New Generation , New System Crusher

Strong Body, Strong rotor, strong setting blocks

90 – 110 kW motor 1500 RPM, sheaves, v-belts

We furnish the liners of Dragon Turbo Crushers by Hardox 400,450,500.
Rotor pallets 16-18 % manganese, chromium
Setting block Liners 16-18 % manganese, chromium

Hydraulic opening system

Easy adjustment mechanism

2 Side usable pallets

Improved latest technology Crushing system

Main Conveyor Belt

700 mm Main Conveyor belt

Main Conveyor 5,5 kW

New system gearbox reduction

Dragon Screen 3 Deck High Capacity

Screen Size :1250x 3000 mm 3 Deck High Capacity

Motor : 11 kW

Stock Conveyors 3 Units

2 units: 500 mm stock conveyor belt

Motor : 3 kW

1 unit: 700 mm stock conveyor belt

Motor : 4 kW

1. Feedback Conveyor 500 mm

Motor: 2.2 kW

2. Feedback Conveyor 500 mm

Motor : 3 kW

Hydraulic block adjustment, Easy To Setup, Primary Block, Siemens

Mobile Chassis :

2 axle chassis

Control Board Schneider Electric

Remote Control For One-Man-Operation.

Hydraulic System

Frequency and speed control system (Optional)

Turbo crusher enabling speed setting

This system provides for fuel savings of 50%

Approx fuel consumption 8 - 12 Lt / h

4 Deck Screen : 4 Deck and 4th Stock Conveyor Belt (Optional )

Generator (Optional)

Cummins , Perkins , Cat , Doosan

Engine power 200 kva generator

Feeding size max. 600 x 600 mm

Feeding height 3,600 mm

Feeding capacity 80 – 140 t/h

Transport dimensions (w x l x h) * 3,000 x 12,000 x 4,300 mm

Total weight 25.000 kg

New Technology Crushing and Screening plant Closed Circuit Crushing Plant
New Product
New technology
This is a revolution Crushing and Screening plant Closed Circuit Crushing Plant Dragon 7
New System Crushing and Screening plant latest Technology
Easy, Practical, Quick Installation, simple transport, use it anywhere.



Mobile Crushing and Screening Plant DRAGON 7

Maximum feeding size : 600mm

Ideal feeding size : 0 - 500mm

Final size : 0 - 20 mm (0-5 mm , 5-12 mm ,12-20 mm or requested three types material and plus by-pass output production )



DRAGON CRUSHERS

Crusher Plants Company

Dragon Crushers Inc.'s line of Dragon 7- 9-10-15-20, Turbo 600,900,950 portable plants are designed for a wide variety of applications. Though each plant is different,

each is the same in fundamental ways: Portability, dependability, durability, competitive capital costs, low cost maintenance and designed to meet customer's needs.

Portability has been a major concern for customers along with quick setup time.

We have accommodated our customers' concerns by making most of our plants portable in one single unit.

Since our plants are portable in one piece they use minimal time in set-up and tear-down. To further reduce set-up and tear-down time,

all plants come standard with telescoping screw jack legs or optional hydraulic lifting legs for fast set-up and to eliminate the time consuming task of cribbing.

We have designed our plants to be able to be placed and running in minimal time providing our customers with reduced set-up costs and increased productivity.

We have proven the dependability and durability of our plants with years of service in the field.

These plants have crushed everything there is to crush and run day-in and day-out and they're still going strong. We constantly look for ways to improve our designs,

make our plants better and continue to out last the competition. Our plants are designed with the idea that a plant should be easily maintained.

We understand the time spent maintaining a plant is time that could be spent producing material.

We strive to design our plants to minimize the time needed to do the necessary maintenance. Dragon Crushers specializes in design and application

- the right product and the right flow plan to accomplish your particular job. Many of our plants are designed around our customer's

specifications but we always keep an eye on flexibility. Since our plants are designed with our customer's needs in mind we are able to builda

more efficient plant and/or eliminate the need for additional equipment to accomplish the same task.
All our products are CE certified by the European Union.
